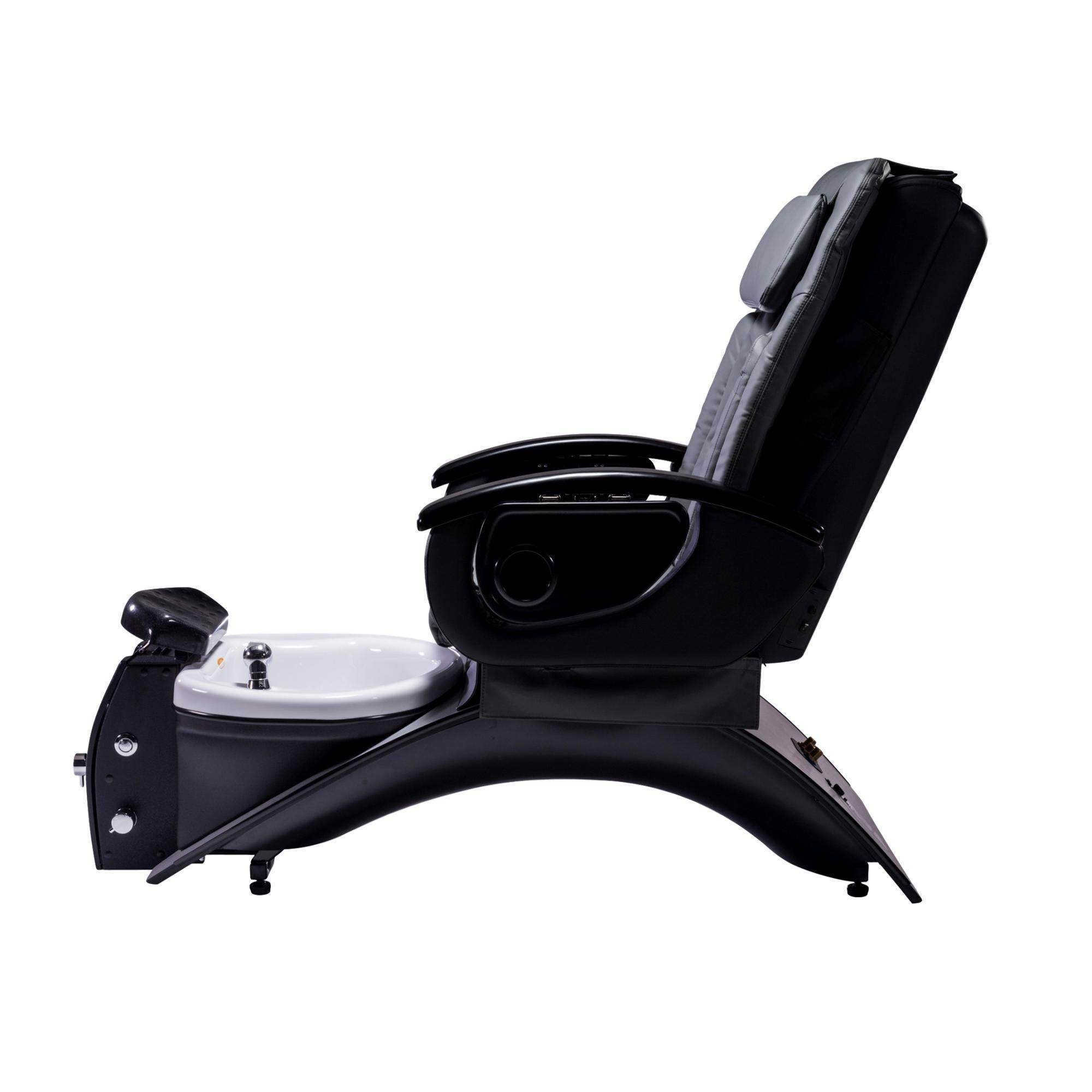

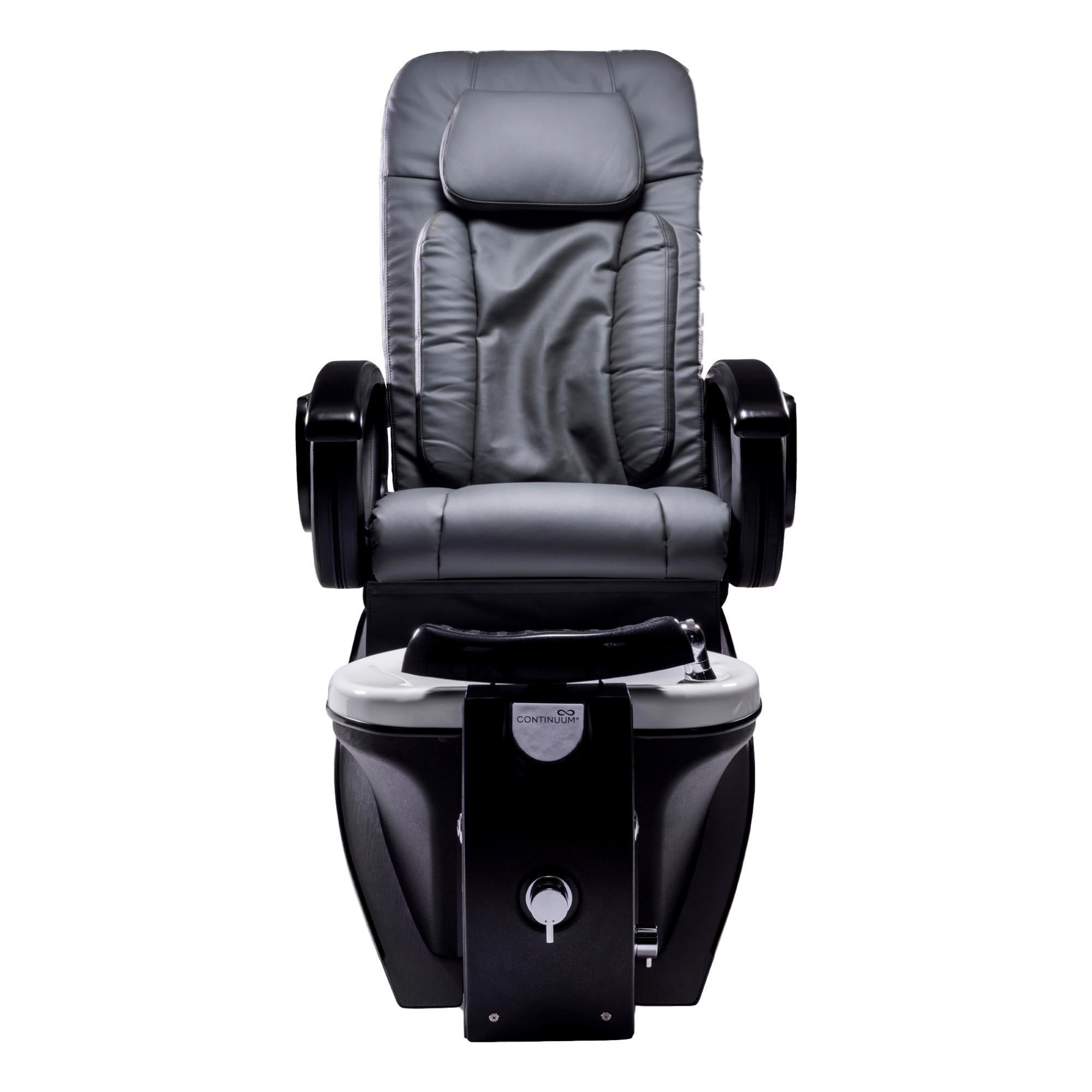

The Vantage is a pedicure spa with bold and distinctive design at a very affordable price. All Vantage spas features a safe and sanitary Magnetic Pipeless Jet System for easy cleaning and compatibility with disposable tub liners.
Note: MUST select the Full Concealment Side Panels if upgrading to the High Capacity Discharge Pump AND/OR the Dual-Vented Air System.
Features
- 1 Magnetic jet (sanitary and quiet)
- Acrylic capped fiberglass basin
- Manual fill
- Capacity: 5.25 US gallon (20 liters)
- Full Shiatsu chair massage
- Standard upholstery options
- Formica® or genuine wood veneers protected by industrial grade finishes
- Forward / back seat movement
- Reclining back
- Adjustable tilt footrest
- Arm rests swing up for easy chair access
- Acetone resistant manicure trays with cupholder
- Steel frame support chair, tub, Formica® laminate,and ABS shrouds
- Removable access panels
- Manufactured in the USA
Optional Upgrades
- Drain pump kit (factory installed)
- Full side cover panels
- Dual Vented Air System
- Custom headrest stitching
Specifications
- Dimensions: Overall: 62”L (158 cm) x 45.5”W (116 cm) x 51.5”H (131 cm), Seat to Floor: 25” (63.5 cm), Minimun distance from Bast to Wall: 14” (35.6 cm).
- Electrical: 120V AC, 15 Amps, 50HZ. A separate and dedicated 15 Amp GFCI circuit MUST be used for each pedicure chair.
- Suggested Outlet: Behind Unit, standard 3 prong plug
- Plumbing: Hot/Cold supply lines required (1/2” ID). ½” MPT connections located on back of spa base.
- Sprayer/Filler: Inline back-flow prevention is provided.
- Discharge: Gravity drain is standard. Upgrade available for optional factory installed drain pump
- Certifications: UL Listed 1951, CAN/CSA C22.2 No. 68-92, ANSI/ASME A112.18.3M, A112.19.7M, A112.18.1, CSA B125.1.2005 Compliant with IAPMO Plumbing Standards.
- Fixtures and hoses are UPC compliant.
- Installed By: Client's Contractor
